Haws AXION MSR 8356WCDD

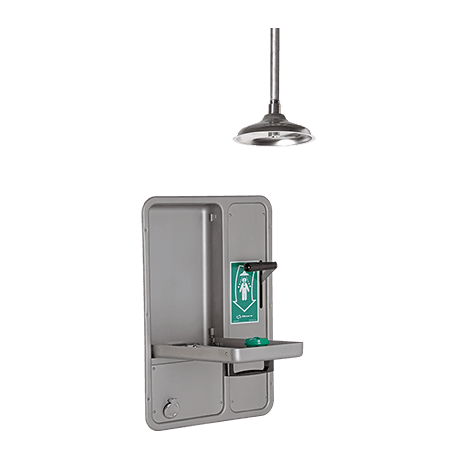

Model 8356WCDD barrier-free combination shower and eye/face wash shall include an AXION^® MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 4.2 gpm flow control. Unit shall also include the AXION MSR hydrodynamic design stainless steel showerhead with 20 gpm flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn electro-polished cabinet, wheel chair accessibility, and polished chrome-plated brass pull-down eye/face wash valve with easy access in-line strainer. Unit shall also include brass pipe and fittings, a drain pan, daylight drain, a front-access maintenance panel, universal sign, 1" NPT(F) inlet and 2" NPT(F) drain. Operating pressure is 30 - 90 psi (2.1 - 6.2 bar).

Haws 8356WCDD Key Features

• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Flexible design of the shower allows for flush in the ceiling mounting, or to hang down from the ceiling
• One piece drain tray catches waste fluid during eyewash use
• Easy access exterior mounted in-line strainer
• 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smooth electro-polished finish
• Daylight drain feature allows for installation where in-wall drainage is not available
• Reducing installation time, eyewash and valve assembly are pre-built and fully water/pressure tested
• Certified by CSA to meet the ANSI Z358.1
