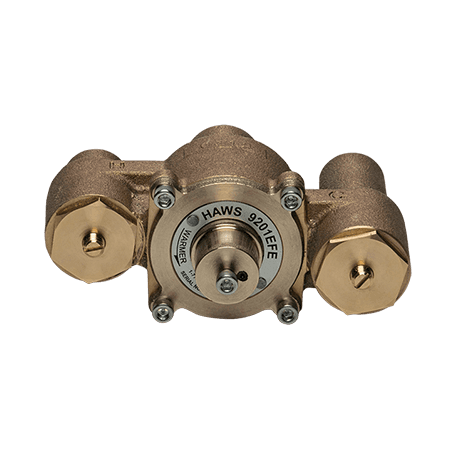

Haws AXION 9201EFE

The Haws Model 9201EFE (patent pending) is a thermostatic mixing valve designed to blend hot and cold water, providing tempered water up to 12 gpm (45.4 L) for emergency eyewash stations. It features a paraffin-filled thermostatic element, minimal internal pressure drop even at low supply pressures, and a high Cold Water Bypass flow rate of 10 gpm (37.8 L). The enhanced brass design, with a one-piece casting, includes internal check stops, oversized valve seats, a shuttle design to prevent valve binding, and a funnel design for better temperature control and mixing at low flow rates. It also includes lime and calcium-resistant components. The factory-set outlet temperature is 85° F (29° C), with a temperature adjustment range of 60° to 90° F (16° to 35° C). Maximum operating pressure is 125 psi (8.62 Bar), with recommended inlet temperatures of 140° F (60° C) for hot water and 40° to 70° F (4.4° to 21.1° C) for cold water. Inlet and outlet sizes are 1/2" NPT(F) and 3/4" NPT(F), respectively.

Features of Haws Model 9201EFE

• A flow rate of 1 to 12 gpm (3.8 to 45.4 L) for better temperature control across the operating range
• AXION's superior design and technology provide a complete safety solution for increased victim comfort.
• Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (83% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• A new and efficient shuttle design eliminates valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature is factory set to 85° F (29° C).
• Tempered water: High temperature limit is factory set to 90° F (32° C).
• Cold water by-pass valves are closed during normal operation, regardless of flow rate.

standard and applicable sections of CSA B125.3.
CSA Certifies this product to perform according to the ASSE 1071
